Project Details

Location: Fort St. John, BC

Time Frame: July 2015 - June 2016

Project Value: $60,000,000

Contract Type: Unit Rate

Services Rendered: Heavy Civil Construction

Project Summary

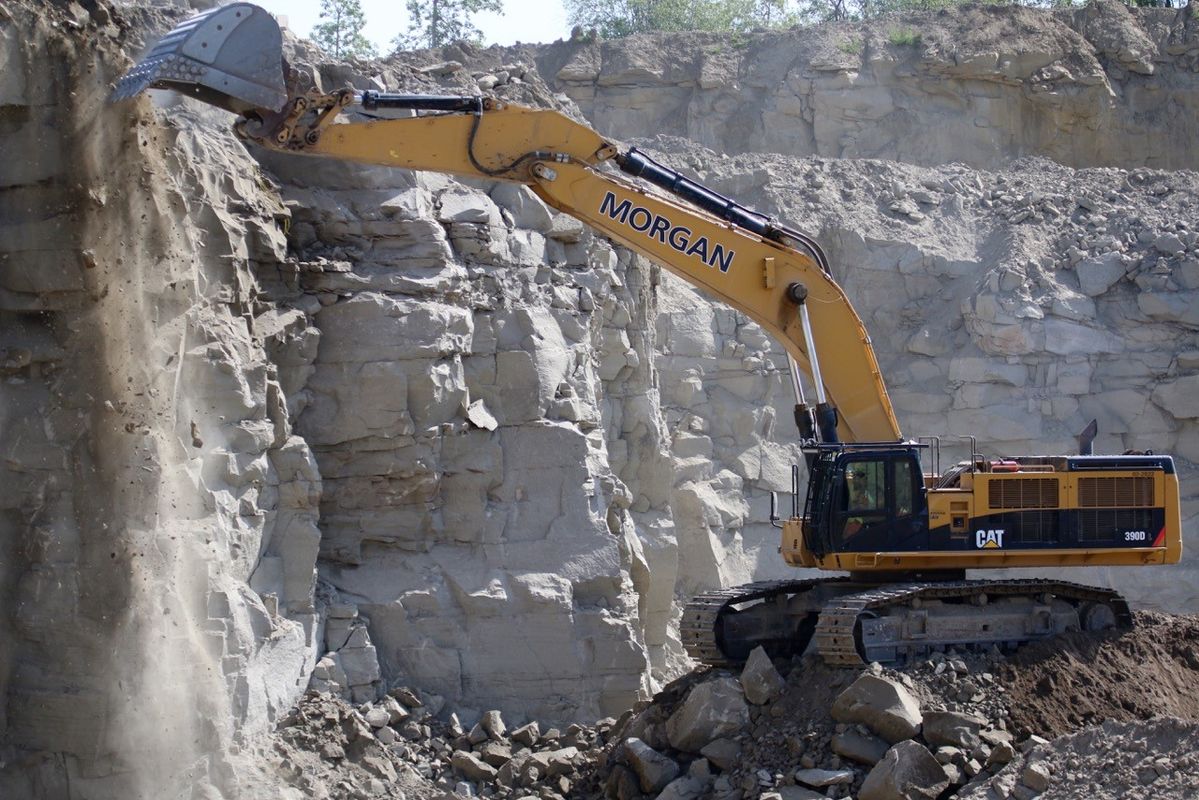

As Prime Contractor, Morgan facilitated the initial construction preparation work for the Site C Dam Project in Fort St John BC. The project included the excavation of 1.8 million m3 from the north bank and placed in a gully to facilitate the relocation of the creek. In preparation for the dam construction Morgan constructed 7.5 km of high-grade all-weather road, 2.4 km of this road was constructed within the Peace River along the toe of the adjacent escarpment. Roughly 750,000 m3 of alluvial gravel to facilitate the in-water road construction was excavated out of the center of the Peace River safely and without incident. In alignment with Morgan's core values of always finding a better way, Morgan provided value engineering by design building a pre-cast 3m diameter box culvert with 36m of bury as opposed to installing multi-plate corrugated steel pipe. Morgan is very proud to have been part of this high-profile project and construction team.

Project Scope

  • Built 5 km of conventional roads to access the construction site, including embankments and fills that were up to 34 m high

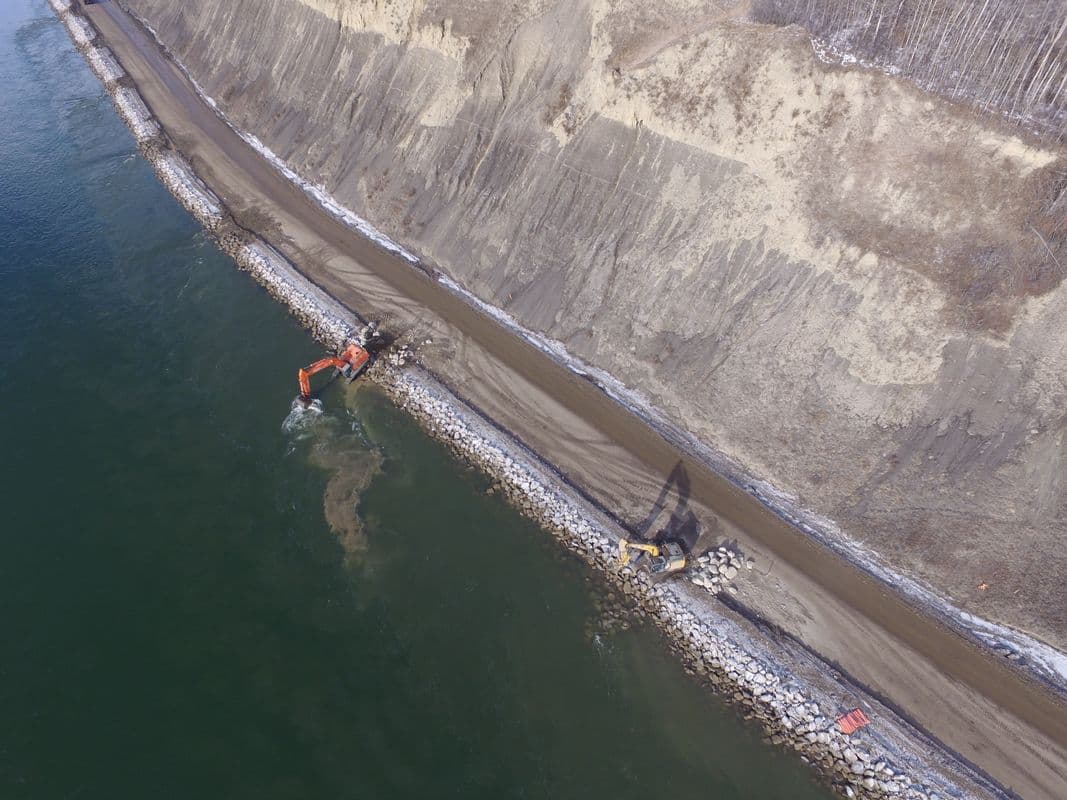

  • Constructed 2.5 km of roads within the river site access, as well as an abutment for a bridge

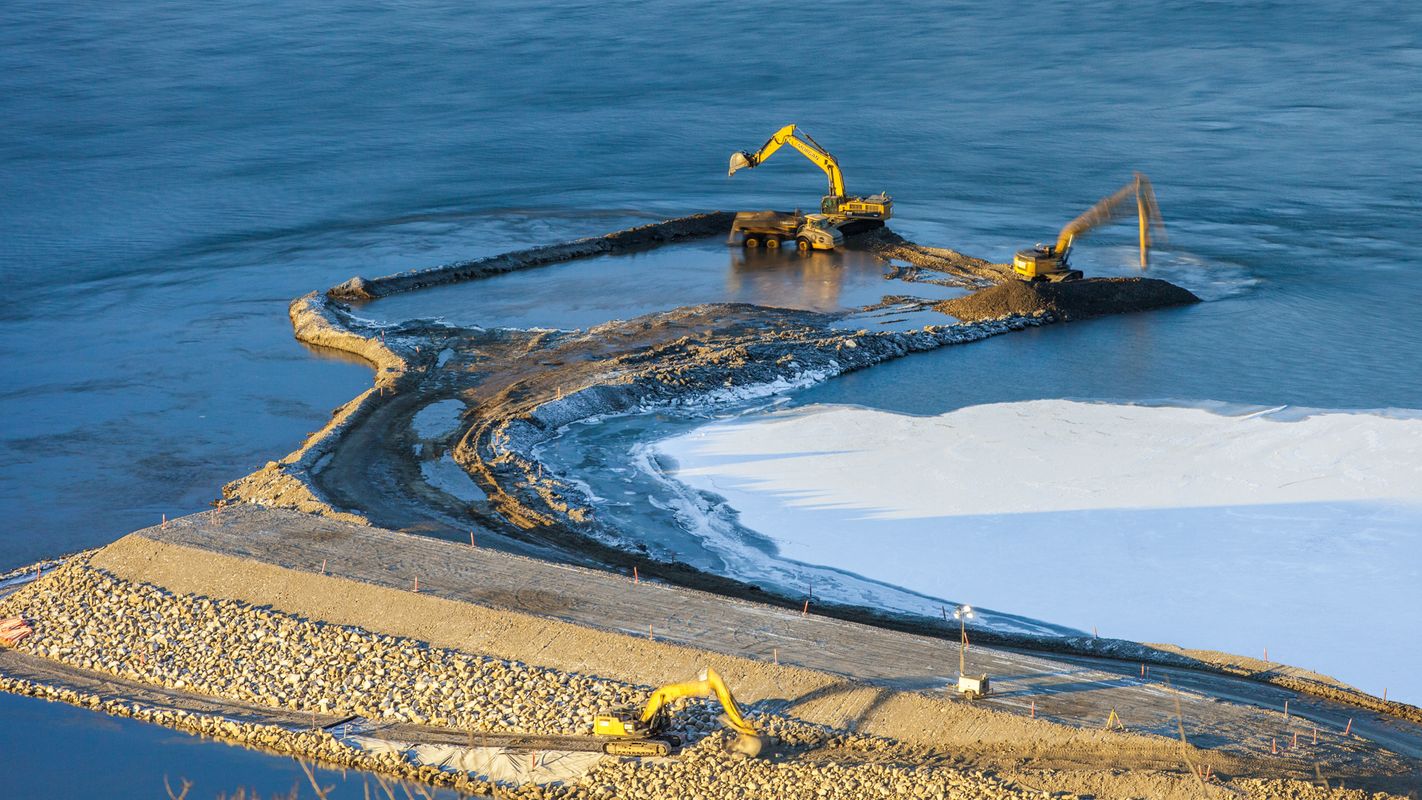

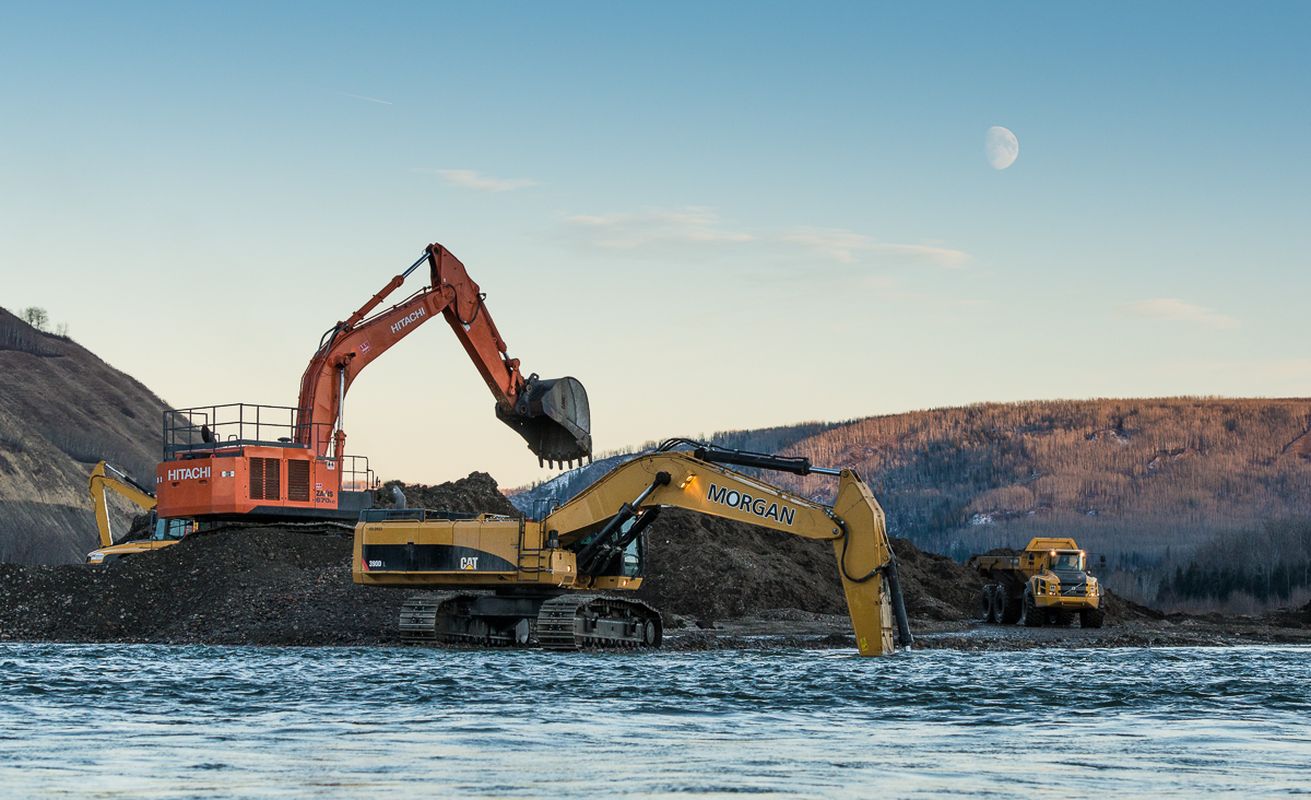

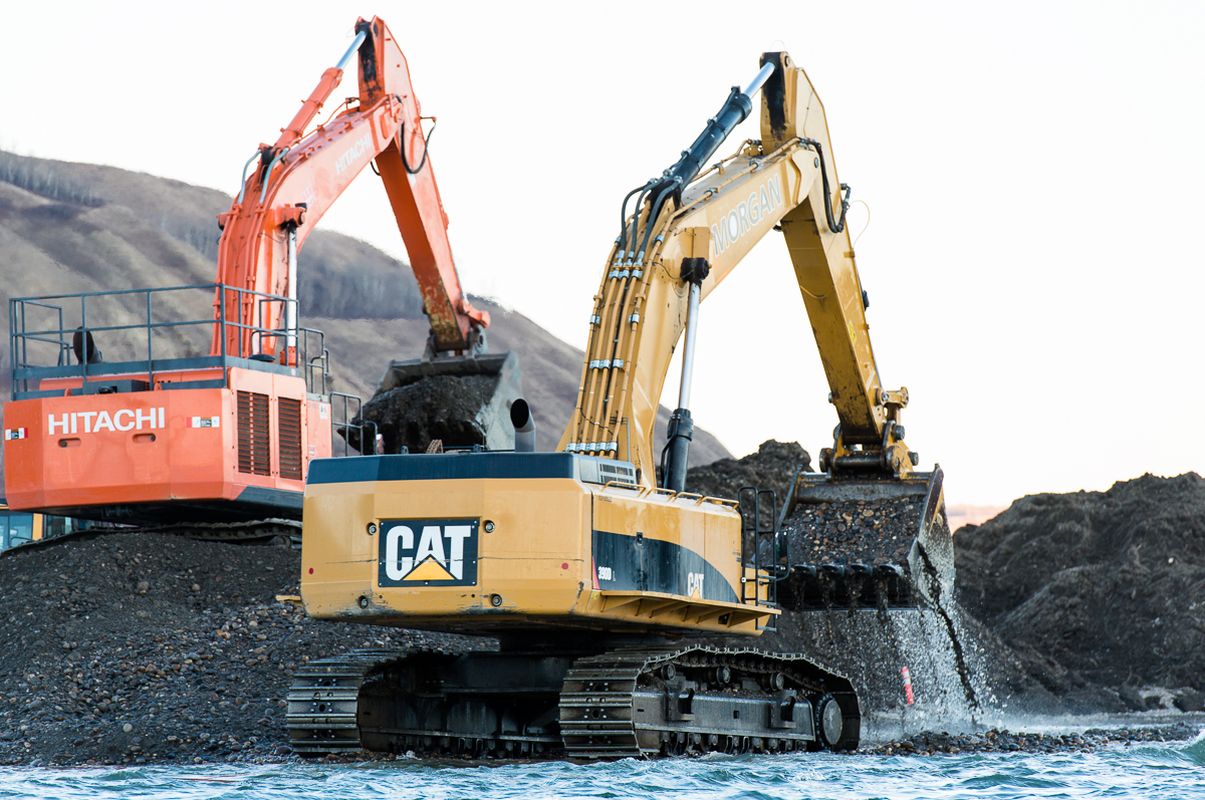

  • To construct the roads and produce aggregate, we excavated 750,000 m3 of material from the river's borrow sources

  • Designed and built a 2.4 m2 concrete box culvert and a temporary creek diversion system

  • Produced and placed various types of gravel, including sub-base, base, and filter layer gravels, to build the road

  • Riprap, which ranged from 10 kg to 500 kg, was produced and added to protect the slopes of the road

  • Culvert installation and drainage construction which included features such as ditches, cisterns, and stilling basins to manage water flow

  • Excavation and storage of potential acid-generating shales, including constructing a clay containment liner with HDPE cover

  • Stripping of organic material and subsoil to on-site stockpiles

  • Added topsoil and used hydro-seeding to establish vegetation on the back slopes of the road

  • Use of GPS survey layout and machine grade control to ensure precise construction of the project
