Project Details
Location: Calgary, AB
Time Frame: June 2017 - November 2017
Project Value: $4,800,000
Contract Type: Unit Rate
Services Rendered: Heavy Civil Construction
Project Summary

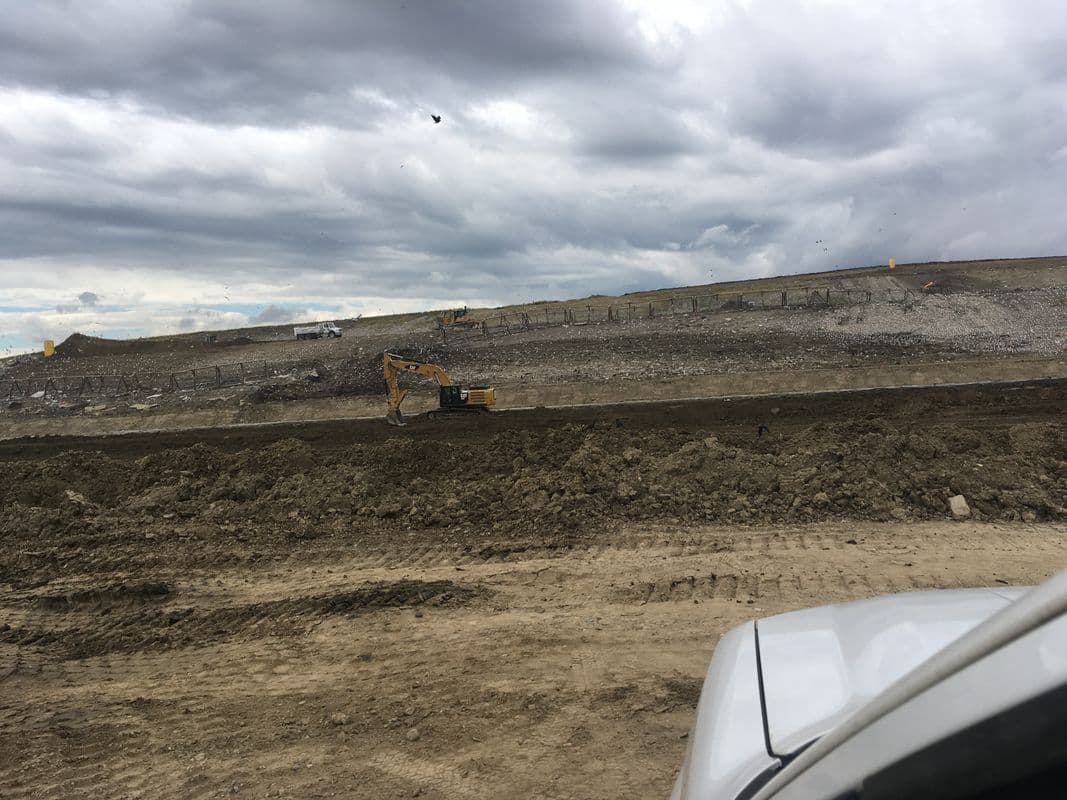

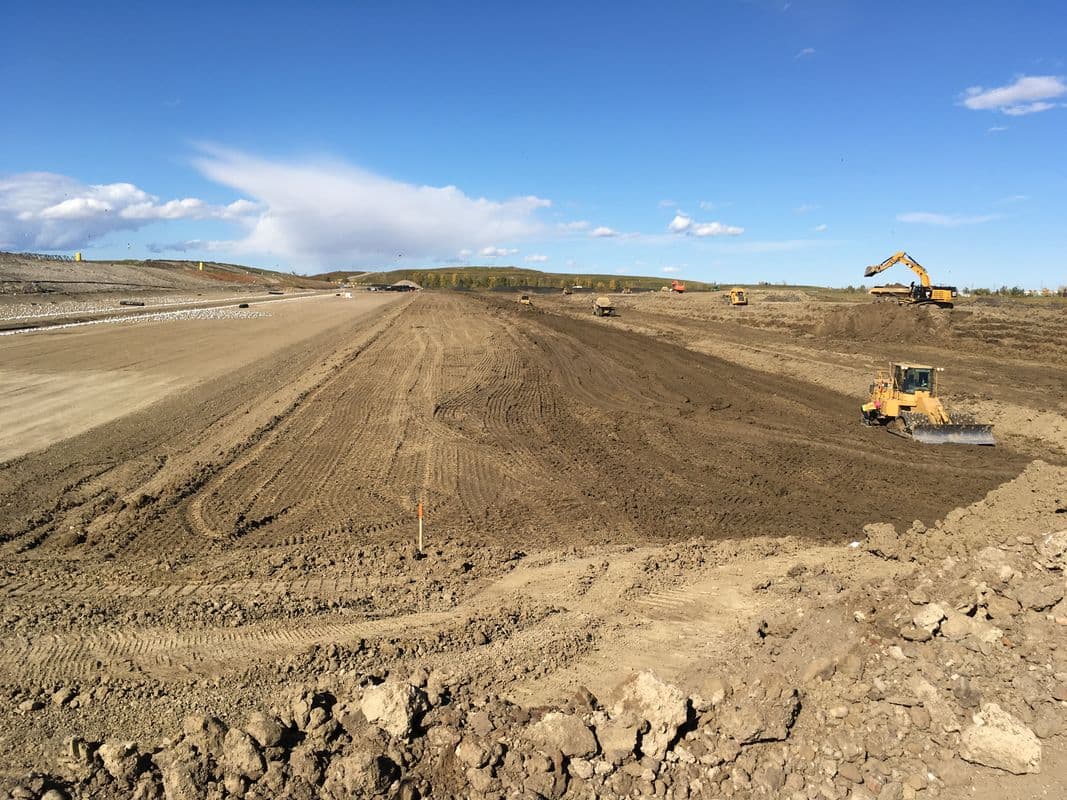

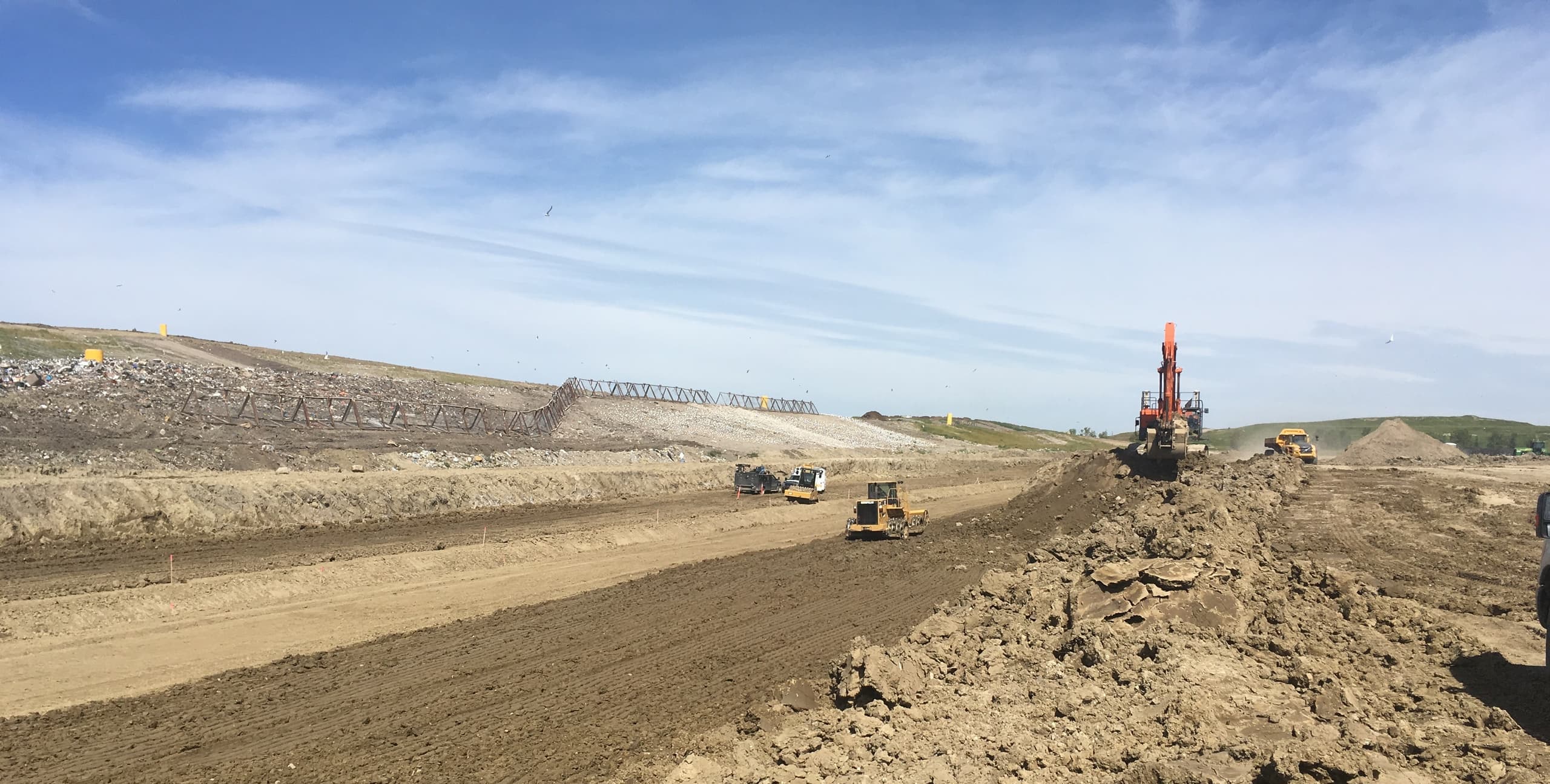

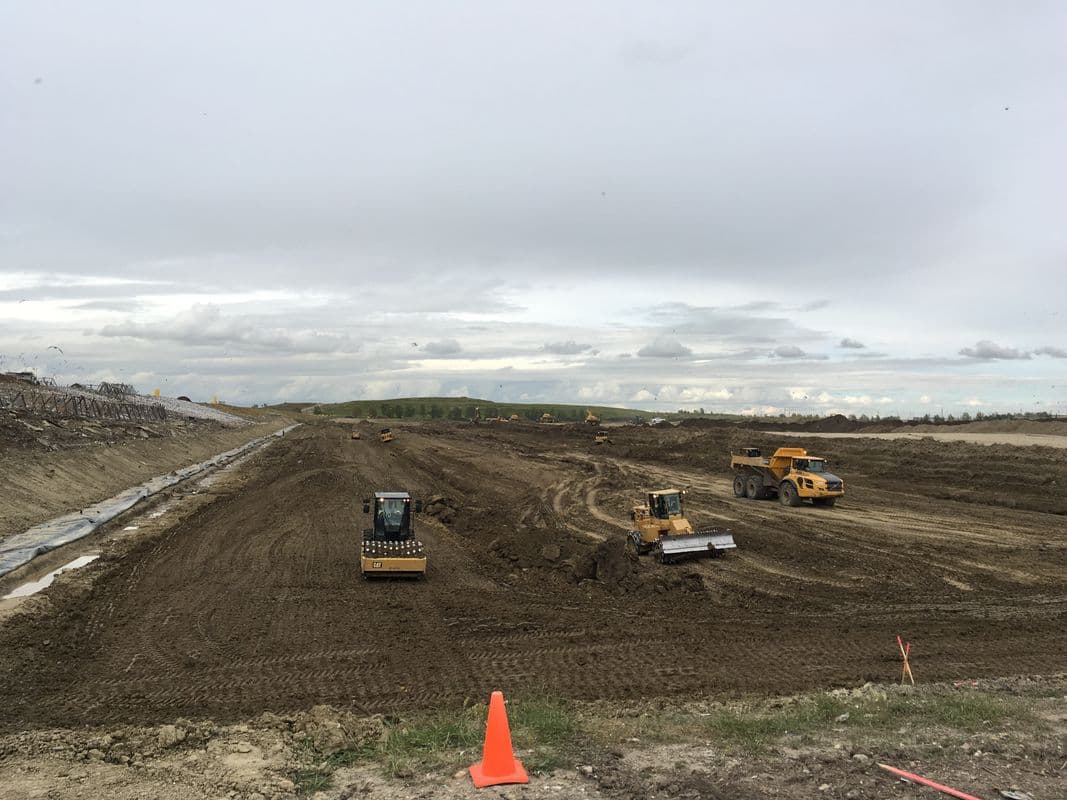

Construction of clay-lined landfill expansion and new access road.
Project Scope
25,000 m3 of topsoil and subsoil stripped from cell footprint
180,000 m3 of excavation from cell and hauled to stockpile to re-use
Installation of 10,000 m2 of geosynthetic clay liner
Construction of 92,500 m3 of impermeable clay liner

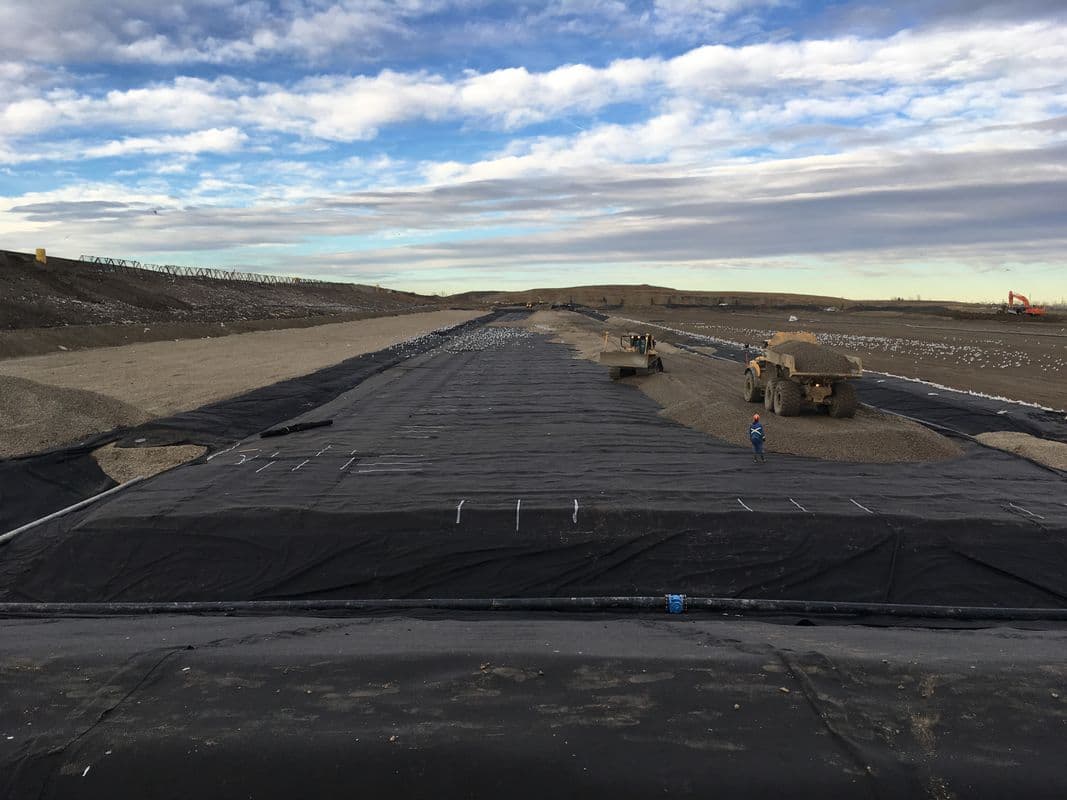

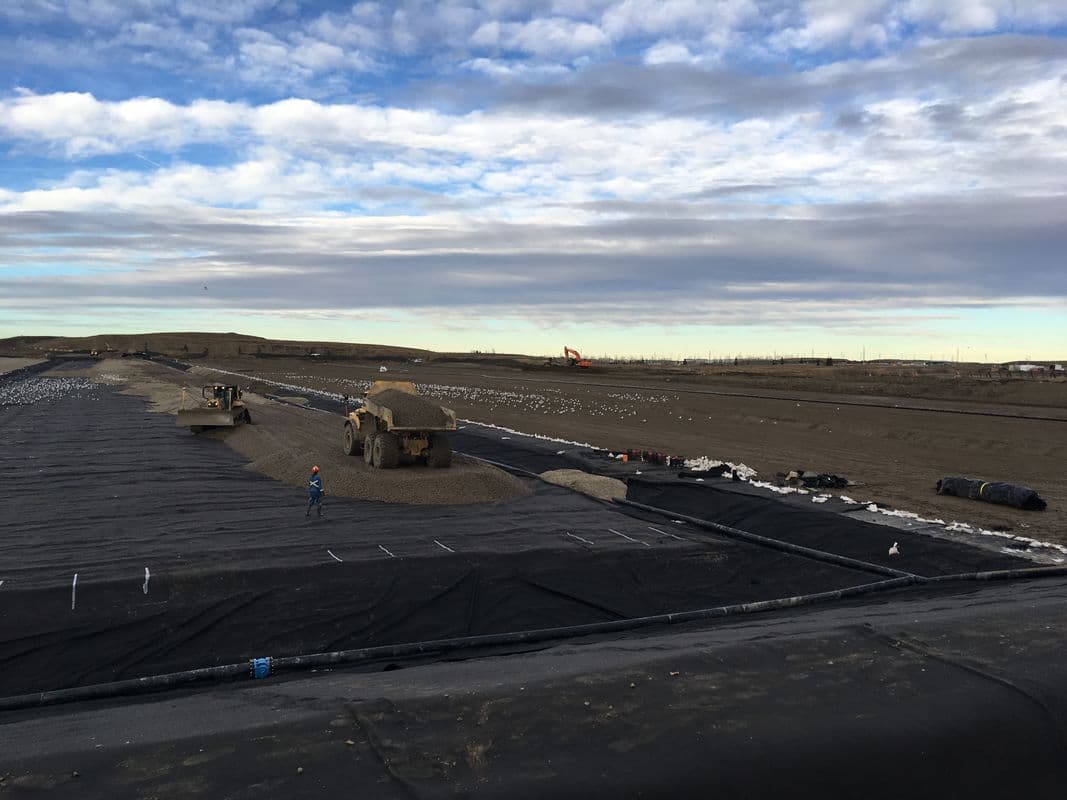

Installation of 73,000 m2 of HDPE liner including a secondary geocomposite liner
Leachate collection system including cleanout, collection manholes and 1,800 m of leachate recovering piping
Installation of 19,100 m3 of tire shred protective cover
Placement of 110,000 m3 of clay barrier layer and organic soils covering existing landfills cells
Construction of new access road around phase 9
